Rain Test Chamber-lPX Rain Spray Test Chamber

  • RIUKAI TECHNOLOGY has 25+ years of experience in the field of environmental testing equipment testing to meet the needs of our customers.
The rain test chamber is a climatic chamber suitably equipped with diffusers capable of simulating the action of rain and, more precisely, the cases outlined by IEC 60529.
The rain test chamber is a climatic chamber suitably equipped with diffusers capable of simulating the action of rain and, more precisely, the cases outlined by IEC 60529.
The rain test chamber is a climatic chamber suitably equipped with diffusers capable of simulating the action of rain and, more precisely, the cases outlined by IEC 60529.
The rain test chamber is a climatic chamber suitably equipped with diffusers capable of simulating the action of rain and, more precisely, the cases outlined by IEC 60529.
The rain test chamber is a climatic chamber suitably equipped with diffusers capable of simulating the action of rain and, more precisely, the cases outlined by IEC 60529.

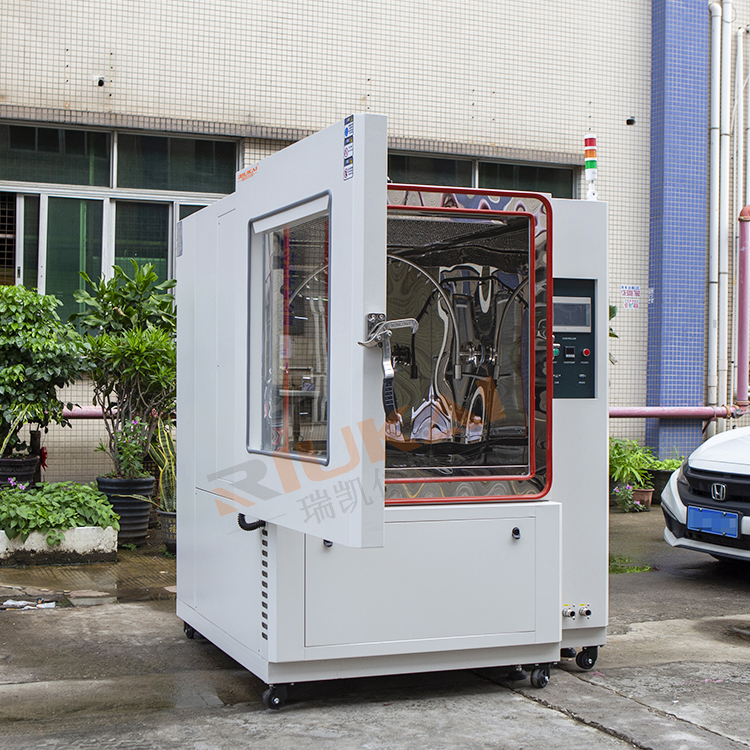

Rain Test Chamber-lPX Rain Spray Test Chamber

Product Model: R-IPX9K-volume Series

Main Parameters:

  • IPX1~IPX6 in one chamber or separate installation in one room
  • Conforms to IEC-60529 IPx1~IPx8, JISD 0203 and US military standards.
  • Water Circulation
  • Waterproof plug for power-on testing of samples

    Get A Quote

    Description：

    Rain Test Chamber is primarily used to test the waterproofing of various products such as automotive parts includingheadlamps, tall lights, wipers, electronic products (according to lEC 60529, JlS, SAE standards), navigation systemsand many other aoplications in defense, aerospace, and research & development. Our lPX series Rain Spray TestChambers features a self-contained water recirculation system that eliminates the cost and inconvenience of plumbingin a faclity water supply. Water is injected into the test enclosure through soecifically sized nozzles. Flow meters withadjustment valves supoly the water spray at specifed fow parameters. A rotating test platform can be incorporated inthe Water Sorav Test Chamber to promote even moisture distribution over the surface of the products under test

    Designed to simulate a soaking, rainy environment, RIUKAI ‘s Rain Soray Test Chambers are buit with the watertightness of sealed components such as automotive or electronic parts making them ideal for conducting a waterspray test.

    Features:

    The levels of protection (lP codes) provided by the enclosures of electrical equipment for road vehicles are specified as follows:

    1.The name and definition of the type and level of protection (lP code) provided by the enclosure of electrical equipment for

    • Preventing foreign objects (including dust) from entering electrical equipment inside the enclosure (preventing foreign objects from entering).
    • Preventing personnel from accessing hazardous components in the enclosure (protection against contact)
    • Protect the electrical equipment inside the enclosure from water ingress (protection against water ingress).

    2. Requirements for each level of protection;

    3. Tests to confirm that the enclosure meets the requirements of the relevant protection class.

    Model RK-IPX9K-225L RK-IPX9K-500L RK-IPX9K-1000L
    Inner size mm (W×D×H） 600×600×600 800×800×800 1000×1000×1000
    Outer size mm (W×D×H） 1000×1280×1650 1100×1480×1750 1200×1500×1950
    Pipe diameter Six points
    Injection water temperature 80℃±5℃
    Spray flow 14~16L/min
    Spray distance 10~15cm
    Jet water pressure 80 ~ 100bar (8000 ~ 10000kpa) 100kg
    Spray angle and time 0 °, 30 °, 60 °, 90 °, spray water for 30 seconds at each angle
    Rotary table speed 5±1 r/min
    Direction of receiving water surface Product front
    Water circulation system Ensure the recycling of water sources
    Running time 1 ~ 9999 min (adjustable)
    Nozzle 304 stainless steel hydraulic pipe
    Water tank 304 stainless steel with insulation
    Test room structure It is composed of test bench, water storage tank, control box, product
    dehydration buffer zone and spray system
    Spray system It is composed of Italian high pressure and high temperature water pump,high pressure and high temperature water pressure gauge, high pressure and high temperature solenoid valve and high pressure and high temperature hydraulic pipe
    Equipment service conditions Power supply: 380V, frequency: 50h, power: 50KW
    Environment condition Temperature 5 ℃ ~ 40 ℃, relative humidity ≤ 85% RH
    Safety protection device Power overload, grounding protection, short circuit protection, water shortage
    protection and alarm prompt
    The detailed specifications shall be subject to the corresponding specifications
