Constant temperature and humidity test chamber

  • RIUKAI TECHNOLOGY has 25+ years of experience in the field of environmental testing equipment testing to meet the needs of our customers.
Temperature and humidity test chambers are used to test the performance of materials in various environments and to test the heat, cold, dry and moisture resistance of various materials. This can determine the performance of the material.
In summary, constant temperature and humidity chambers play a pivotal role in research, development, and manufacturing processes, providing a controlled and reliable environment that leads to better quality products, more insightful research, and efficient testing methodologies. The benefits of using these chambers extend across a wide range of applications and are vital in advancing various industries and scientific fields.
Temperature and humidity test chambers are used to test the performance of materials in various environments and to test the heat, cold, dry and moisture resistance of various materials. This can determine the performance of the material.
Temperature and humidity test chambers are used to test the performance of materials in various environments and to test the heat, cold, dry and moisture resistance of various materials. This can determine the performance of the material.
Temperature and humidity test chambers are used to test the performance of materials in various environments and to test the heat, cold, dry and moisture resistance of various materials. This can determine the performance of the material.
Temperature and humidity test chambers are used to test the performance of materials in various environments and to test the heat, cold, dry and moisture resistance of various materials. This can determine the performance of the material.

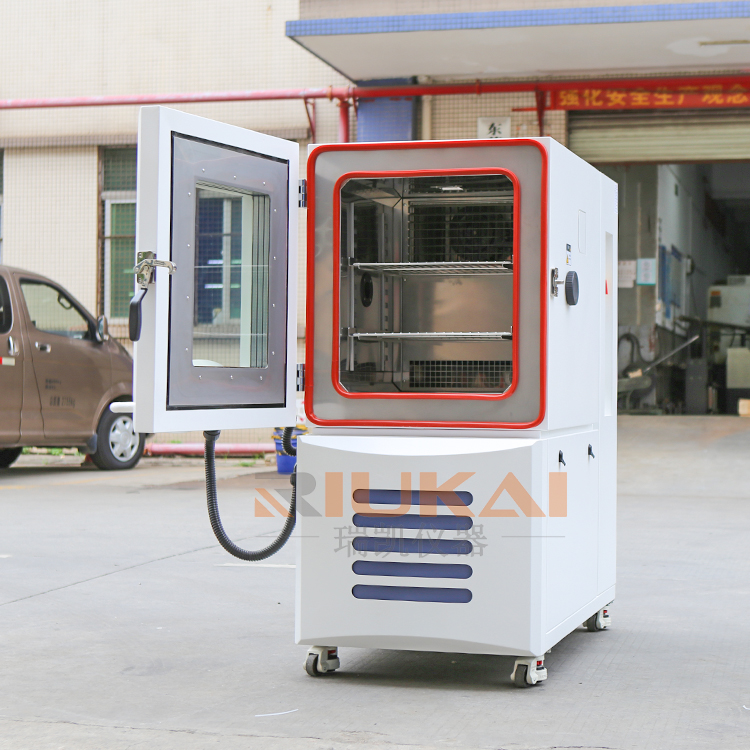

Constant temperature and humidity test chamber

Product Model: RK-TH Series,100L~1000L

Main Parameters:

  • Temperature: -90℃/-80℃/-70℃/-20℃/0℃/ ~ +150℃（180℃）
  • Humidity: 20%～98% RH (other humidity is optional)
  • Heat up rate: Average 3℃/min
  • Cool down speed: Average 1℃/min

    Get A Quote

    Description of Constant temperature and humidity test chamber：

    Constant temperature and humidity chambers are precision devices, also known as climate chambers and climate chambers, that simulate a variety of temperature and humidity environments for high and low temperature operation and storage, temperature cycling, hot and humid and low temperature. It is used in various industries to test the performance and durability of products under controlled environmental conditions.

    Features of Constant temperature and humidity test chamber:

    • Large removable touch screen controller for easy reading of test data.
      There is a fog-free observation window, and the chamber has a high brightness halogen lamp.
    • Accurate wet/dry-bulb humidity measurement system for easy maintain.
    • LED microcomputer controller makes the temperature and humidity constant.
    • Available for customized design and provide various options to meet different test requirements.

    Test Standard of Constant temperature and humidity test chamber:

    • GB/T 10589-1989 Low temperature test chamber Technical conditions
    • IEC 68-2-1 test A: cold
    • IEC68-2-14 Test method N: Temperature change
    • GJB150.9-1986 military equipment environmental humidity and heat test
    • GB/T 10592-1989 High and low temperature test Technical conditions.
    • GB24231-1989 basic environmental low temperature test for electrical and electronic products
    • GB/T 10586-1989 Humid heat test chamber technical conditions
    • GB/T2423.4-1993 Electrical and electronic products test Db: alternating heat and humidity test
    Model
    RK-TH-100
    RK-TH-150
    RK-TH-225
    RK-TH-408
    RK-TH-800
    RK-TH-1000
    Interior size (cm) WxHxD
    40×50×50
    50×60×50
    50×75×60
    60×85×80
    100×100×80
    100×100×100
    Exterior size(cm) WxHxD
    60×140×130
    70×150×130
    70×165×140
    80×175×160
    120×195×165
    120×195×185
    Temp. range
    -80℃，-70℃，-60℃、-40℃、-20℃、0~150℃ Other temperature can be customized
    Humidity range
    20%~98% R.H (5%~98%R.H, 10%~98%R.H for option,can be customized)
    Temp./Humidity fluctuation
    ±0.2℃ / ±2.0%RH
    Temp./Humidity uniformity
    ±2℃ / ±2% R.H
    Heating time
    About 3℃/min (empty load)(Customized can do 5℃~50℃/min)
    Cooling time
    About 1℃/min (empty load)(Customized can do 5℃~50℃/min)
    Interior material
    SUS#304 Stainless Steel
    Exterior material
    Baked Painting Steel Or Stainless steel(SUS304)
    Insulation material
    Rigid polyurethane Foam and Glass Fiber Wool
    Refrigeration System
    Air（Water）cooling condenser /Mechanical single/double stage refrigeration system、R404A (R449A is available on request )
    Safety protection device

    Humidification system overheat protection、Fan overcurrent protection、Overheat protection circuit breaker、Compressor overload protection、Control system overload protection、Over-temperature protection、Water shortage protection、Overload indicator、High and low voltage protection、Water supply delay protection
    Other components

    1.Multi-layer vacuum glass observation window

    2.Cable port(50 mm), for cable routing

    3.Controlling status indicator lamp

    4.View light * 1

    5.Loading shelf( 2 pcs, position adjustable)
