Panelized Walk-in Test Chambers

  • RIUKAI TECHNOLOGY has 25+ years of experience in the field of environmental testing equipment testing to meet the needs of our customers.
Panel Walk-in Chambers are made from lightweight panels for fast and easy installation. Locating pins ensure an accurate fit and the Cam Action Speed Locks securely join panels in place. The corner posts are built at a defined 90-degree angle to strengthen and align the entire chamber.
Panelized walk-in chambers are test chambers constructed using interlocking insulated panels, allowing for easy assembly of any size without significant construction challenges during move-in. Panels are typically sealed together with special silicone caulking.
Walk in Test Chamber — Suppy Walk-in Chambers, Environmental Test Chambers, Temperature and Humidity Chambers. Temperature and Humidity Solutions, mainly for testig electronic parts, battery.

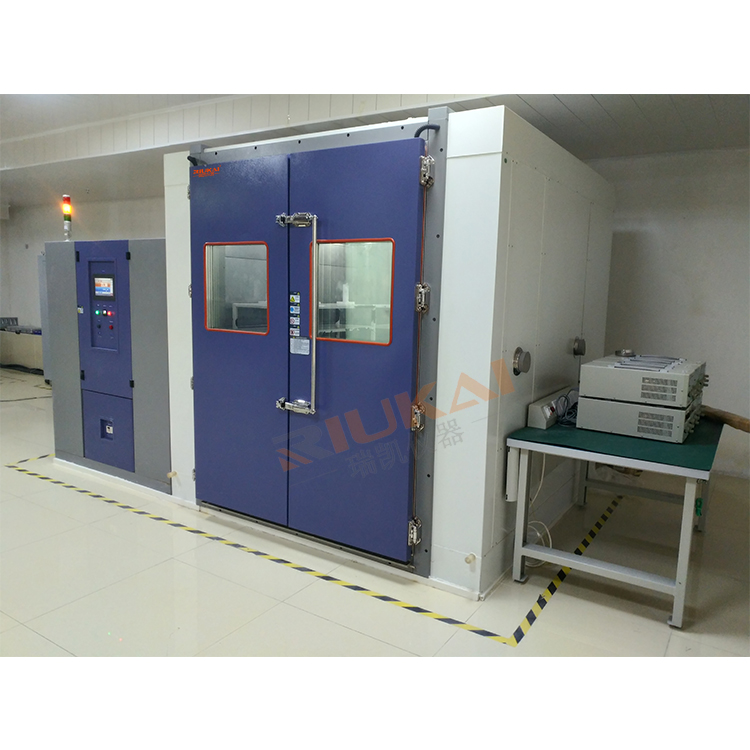

The Panelized Walk-in Test Chambers are placed in the laboratory, and RIUKAI provides the customer with computers so that the staff can operate them next to the Panelized Walk-in Test Chambers.
The Panelized Walk-in Test Chambers are placed in the laboratory, and RIUKAI provides the customer with computers so that the staff can operate them next to the Panelized Walk-in Test Chambers.
The Panelized Walk-in Test Chambers are placed in the laboratory, and RIUKAI provides the customer with computers so that the staff can operate them next to the Panelized Walk-in Test Chambers.
Panel Walk-in Chambers are made from lightweight panels for fast and easy installation. Locating pins ensure an accurate fit and the Cam Action Speed Locks securely join panels in place. The corner posts are built at a defined 90-degree angle to strengthen and align the entire chamber.

Panelized Walk-in Test Chambers

Product Model: RK-WTH-volume Series

Main Parameters:

  • Temperature: -90℃/-80℃/-70℃/-20℃/0℃/ ~ +150℃（180℃）
  • Humidity: 20%～98% RH (other humidity is optional)
  • Heat up rate: Average 3℃/min
  • Cool down speed: Average 1℃/min

    Get A Quote

    Application of Panelized Walk-in Chambers：

    From aerospace and avionics to refrigerators and automobiles, RIUKAI’s panel walk-in chambers are where parts, assemblies and finished products are tested. RIUKAI is committed to providing test equipment designed to meet specific needs. Understanding the size, quantity and testing requirements of your product will help determine the most appropriate chamber size for your application. If our standard equipment does not meet your test requirements, we will design a customised test chamber to meet them.

    Features of Panelized walk-in test chambers:

    RIUKAI Panelized walk-in test chambers are designed and built to last to meet individual test requirements. Conditioning modules are pre-engineered and pre-packaged with conditioning pipework and refrigeration machinery mounted on a common base. Custom configurations are also available if standard module sizes do not meet your needs.

    Model
    RK-WTH-volume
    Interior size (cm)WxHxD
    8 m³, 10 m³, 30 m³, 50 m³, 100 m³, as per customer requirements
    Exterior size(cm)WxHxD
    Temp. range
    -80℃,-70℃,-60℃,-40℃,-20℃,0~150℃ Other temperature can be customized
    Humidity range
    20%~98% R.H (5%~98%R.H, 10%~98%R.H for option,can be customized)
    Temp./Humidity uniformity
    ±2℃ / ±2% R.H
    Heating time
    1 to 3.4°C / Min (empty load,customized can do 3℃~20℃/min)
    Cooling time
    1 to 3.4°C / Min (empty load,customized can do 3℃~20℃/min)
    Interior material
    SUS#304 Stainless Steel
    Exterior material
    Baked Painting Steel Or Stainless steel(SUS304)
    Insulation material
    Rigid polyurethane Foam and Glass Fiber Wool
    Safety protection device

    No fuse switch / Heater over current protection /

    Fan overload protection /Compressor overpressure protection
    Optional Accessories
    Slope for cart , Recorder, Water Purifier, Dehumidifier
    Power
    AC 380 V(±10%),50/60HZ ,3 phase 5 Lines

    Category
