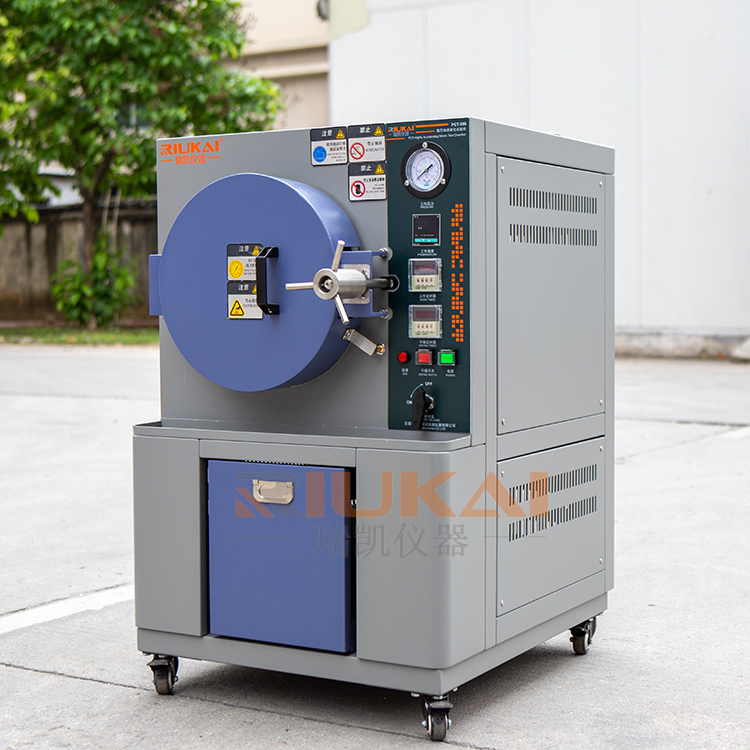

PCT Pressure Cooker Test Chambers
PCT Pressure Cooker Test Chambers
Product Model: RK-PCT Series,Size:φ300mm~ φ2000 mm
Main Parameters:
- Temperature range: 100℃~135℃, (143℃/160℃ is optional)
- Humidity range: 100% RH (Saturated vapor humidity)
- Pressure range: Relative pressure +0.0 Kg/c㎡ ~2.0 Kg/c㎡
Description Of PCT Pressure Cooker Aging Test Chambers
RIUKAI PCT test chambers create high pressure, high temperature and high humidity environments. Applications are wide-ranging, such as PV modules、moisture resistance evaluation of new materials、storage testing of electronic parts, and identification of defective batches、surface treatment evaluation tests for lead pins, materials, plated parts, etc., and accelerated deterioration test for various paint-related materials.
They are also used in the development and testing of electronic components, as exposure to humidity can cause electronic equipment to malfunction.Test conditions are also available at 100°C and 100% RH.
Features Of PCT Pressure Cooker Aging Test Chambers
- PCT high pressure aging tester structure characteristics
- Adopting imported microcomputer to control the saturated vapor temperature.
- Time controller adopts LED display;
- stainless steel round test box structure, in line with the industrial safety container standards
- Precise design, less water consumption, each time the water can be continuously 200h.
- Automatic access control, the water can be used for the test.
- With automatic water filling function.

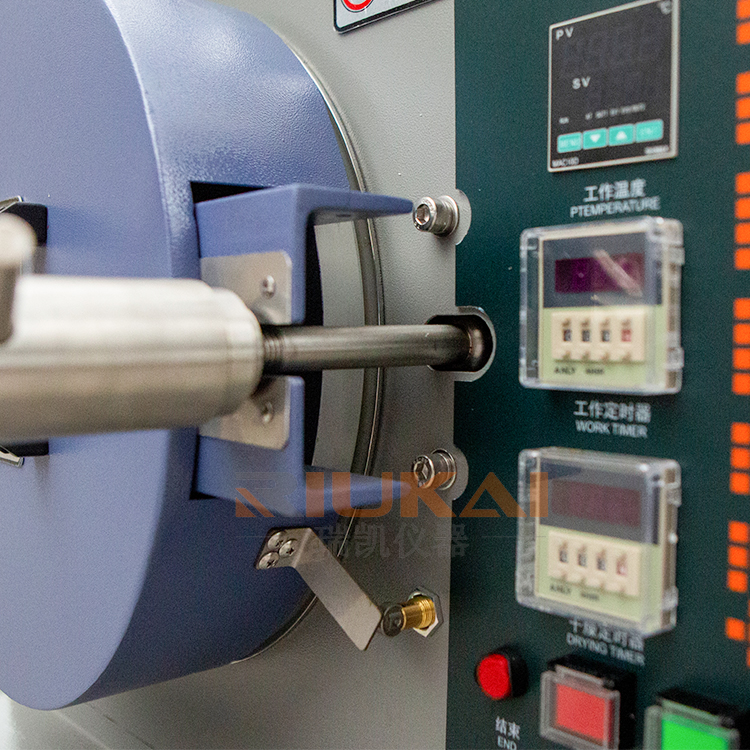

- LED digital temperature controller can be used for setting, controlling and displaying the test temperature.
- Integral molding silicone ring, good air density.
| Model | RK-PCT-350 | RK-PCT-450 | RK-PCT-550 | RK-PCT-650 | ||
| Exterior dimension WxHxD cm | 600*955*690 | 750*1055*790 | 850*1155*890 | 920*1655*1152 | ||
| Test tank dimensions | φ300 * D450 | φ400 * D550 | φ500 * D650 | φ600 * D750 | ||
| Pressurization time | About 45 min | About 55 min | ||||
| Temperature control method | SSR Driver | |||||
| Temperature | Scope of use | 100℃ ~ 134℃ | ||||
| Control accuracy | ±1.5℃(100~104℃) / ±1.0℃(105~134℃) | |||||
| Humidity | Scope of use | Saturated water vapor ( 100%RH STD mode) | ||||
| Time | Scope of use | Up to 200 hours continuous | ||||
| Time Setting Range | 0.1 hours ~ 999.9 hours (in increments of 0.1 hours) | |||||
| Pressure range | Relative pressure +0.0 Kg/c㎡ ~2.0 Kg/c㎡ | |||||
| Exhaust mode | Normal exhaust/natural cooling | |||||

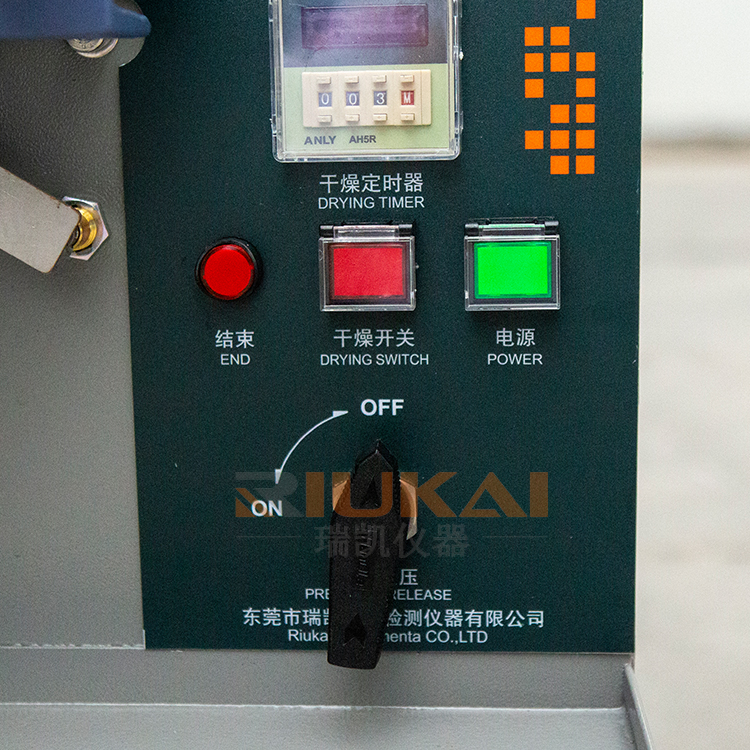

| Controller | Push button or touch screen (optional) | |||||
| Temperature Sensor | PT100 | |||||
| Voltage application terminal | Customizable | |||||
| Water supply method | Manual water supply | |||||
| Door opening and closing mode | Manual locking | |||||
| Test tank material | Stainless steel SUS304 | |||||
| Power supply | Single-phase AC220V 50/60 Hz | |||||
| Safety protection device | Pressure safety valve | |||||
| Preventing abnormal pressure switch | ||||||
| Earth leakage circuit breaker | ||||||
| Control fuses | ||||||
| Safety device options | Breaker for heater, Thermal fuse | |||||
